Ælement - ANSI

• Reader body made using double layered injection construction.
• Clear dual colour LED light (green/red) to indicate lock authorisation.
• Mechanical privacy option by a mechanical thumbturn. The user can activate the “do not disturb” function just by operating this thumbturn.
• Special blink and beep indication when lock is in privacy mode.
• Ability to enable/disable the acoustic signal.
• Available with mechanical cylinder key override or access lock outs (override mortise cylinders).
• Compatible with ANSI A 125.13. mortise lock retrofit.
• UL10C compliant.
• Declaration of conformity CE.
• FCC/IC conformity

Mortise Lock features

• Mortise lock with built in door detector, privacy detector and mechanical key override detector.
• Automatic deadbolt model is available.
• Axe distance 62mm.
• Lock latched deadbolt made of steel.
• Choice of finishes: satin stainless steel or gold enamelled.
• Front plate shape: square.
• Handed lock - L/R - reversible.
• Inside always allows free egress
  (Anti-panic in combination with lock).
• UL 10C listed (90 min).

• Covers door thicknesses: From 45mm up to 125mm.

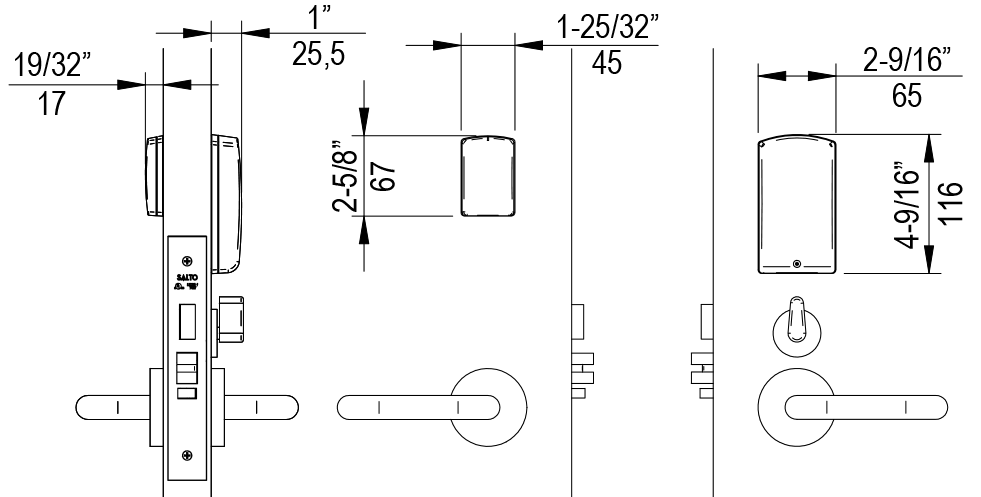

• Reader dimensions: 67mm x 45mm x 17,5mm.
• Battery pack dimensions (inside): 116mm x 65mm x 25.5mm.
• Handle block mechanism lock.
• Handle rotation: 52º.
• To be used in combination with SALTO LA1T17 mortise lock.
• Square spindles available: 8mm split (SALTO spindles required).
