SALTO EXPANSION BOARD - CU4EB8
The CU4EB8 provides multi-relay switchable output management to external systems such as lift floor level access, multi-shutter and barrier systems, machine switching and more.
Product
Features
- Works with the CU42xx.
- Input and output board managed by the controller.
- Software configuration.
- Up to 16 connected units.
- Additional control output relays.
- Compatible with the SALTO ProAccess SPACE alarm event engine module to manage trigger events through inputs when connected to an online network via BUS485.
Technical Characteristics
- Connection to the controller through BUS485.
- 8 relay outputs.
- 4 relay inputs.
- 2 tamper inputs (input, switch).
- The maximum cable length between the I/O board and the controller is up to 400 meters.1
- Connection to the controller using 2 wire connection, twisted pair.
- Power consumption: 12V DC 400mA, supplied by a power adaptor.
Technology platforms
- ROM Scalable System
- SVN data-on-card
- SVN-Flex
- BLUEnet Wireless
- JustIN Mobile - Digital Key
Wireless technologies
NFC
Bluetooth LE
RFID

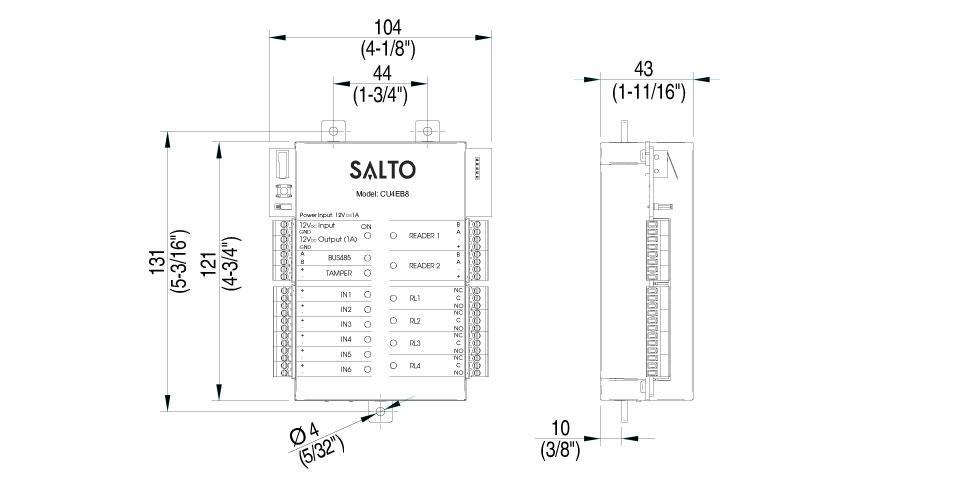

Technical Drawing
Certifications
(*) External escutcheon.
