SALTO UBOX4000

The UBOX4000 offers a compact solution updater kit based on a SALTO Controller (CU42E0) and a Wall Reader (WRDxx) that permits to integrate with third party products. Focused on delivering a complete solution on integrated projects, it offers a configurable output covering a wide range of interfaces and data types.

SALTO UBOX4000



Features

  • Online TCP/IP networked based updater.
  • CU ADAPT function for third party integration.
  • Two wall reader connections for entry and exit.
  • Compatible with the SALTO ProAccess SPACE alarm engine event module. (No door control)

Technical Characteristics

  • Ethernet Interface: 10BASE-T/100BASE-TX
  • Outputs interfaces:

— RS232

— OMRON

— WIEGAND

  • Power consumption: 12V DC 400mA (without the Wall readers).

Technology platforms

SALTO Space

SALTO Space

  • ROM Scalable System
  • SVN data-on-card
  • SVN-Flex
  • BLUEnet Wireless
  • JustIN Mobile - Digital Key

Wireless technologies

Bluetooth LE

Bluetooth LE

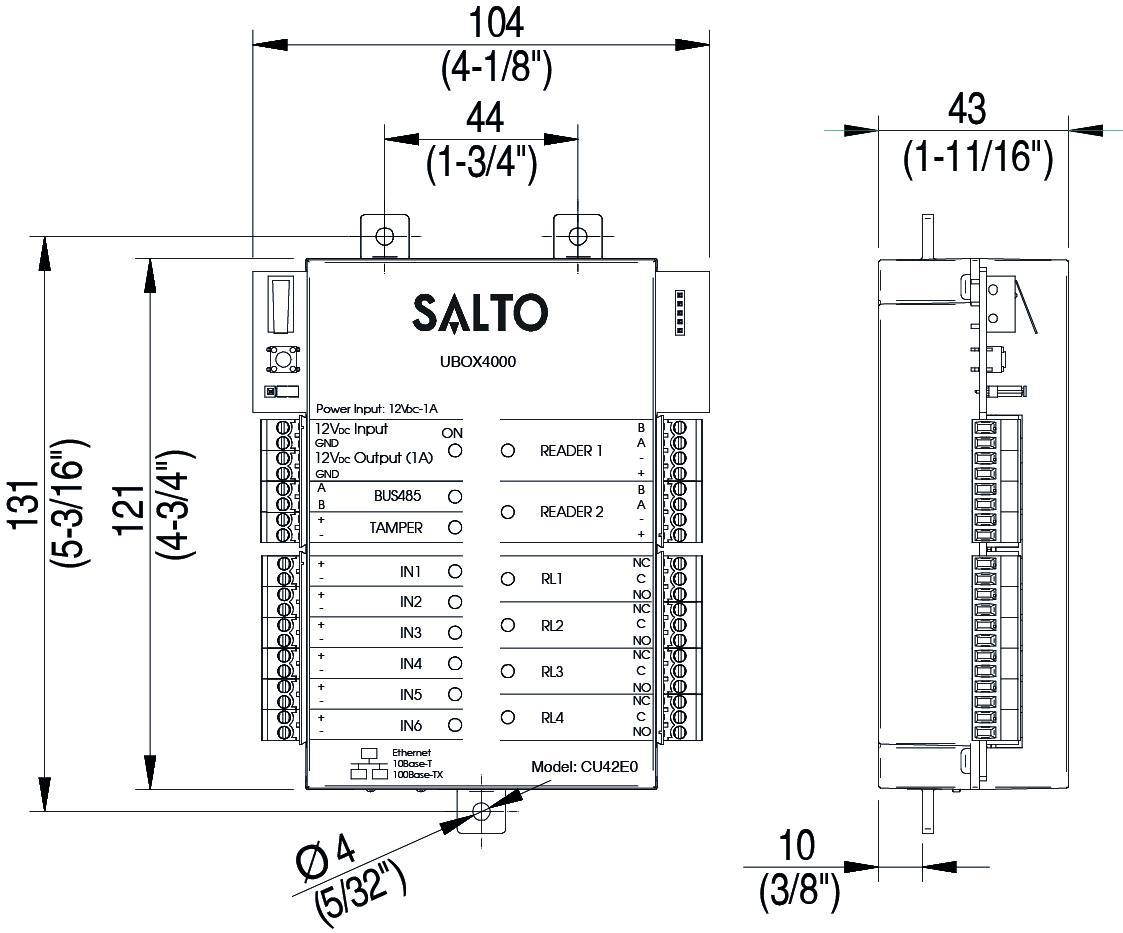

Technical Drawing

SALTO UBOX4000

Certifications

  • CE
  • FC
  • EAC
  • IC
  • RCM

(*) External escutcheon.
