XS4 LS5N - Scandinavian Mortise Lock

Wide range of specially designed Scandinavian standard mortise locks that ensure the door is locked correctly and securely. Developed to increase both the security and safety of the entire door, especially when used with access control and building key management systems. Suitable for use with Scandinavian XS4 Nordic escutcheons, XS4 Nordic Mini electronic locks and XS4 Nordic GEO cylinder models on both interior and exterior doors.

Features

Scandinavian standard mortise lock.
Suitable for XS4 Nordic standard escutcheons and electronic cylinders.
High security lock for exterior and interior Scandinavian standard doors.
Scandinavian oval and round type cylinder compatible.
Lock case, latch and deadbolt made of zinc plated steel.
Equipped with auxiliary latch (anti card system) to prevent unwanted intrusions.
Scandinavian standard strike plate available for an optimal installation.

Technical Characteristics

Axe distance 105mm.
Compatible with Scandinavian oval and round type cylinder.
Round front plate available.
8mm square spindle.
Turning angle 33º.
Backsets available 50mm.
Front plates available: 22mm.

Handing

Handed lock, not reversible.

Operations and functions

Intelligent integrated detectors for deadbolt and door position to monitor the status of the door without any additional hardware or fitting.*
Detection of intrusion alarms. *
Opened and closed status of doors through SALTO Wireless technology.*
Optional integrated electronic privacy detector for door/room status real-time monitoring.*
Anti-panic safety function: In locked position, turning the inside handle retracts auxiliary latch and deadbolt simultaneously.
Mortise lock available with or without deadbolt for additional security.
The handle retracts the latch to normal position.

* Depending on the model

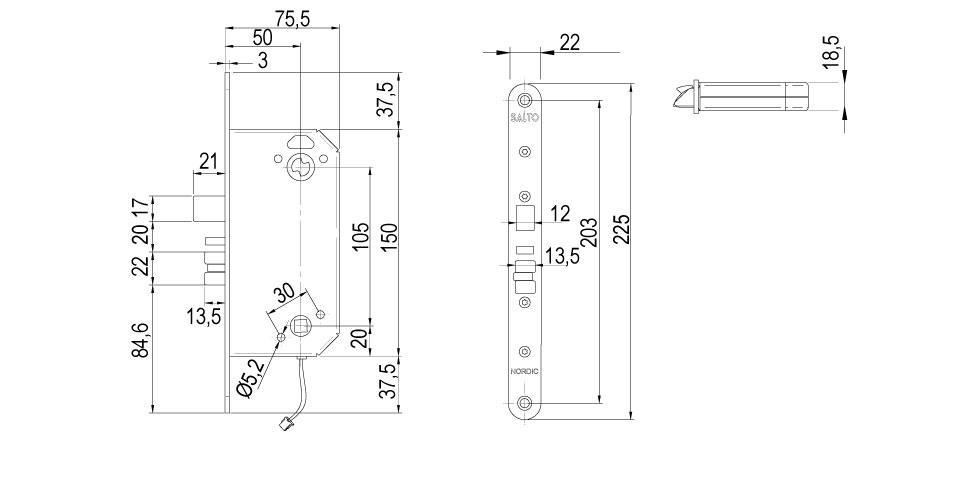

Technical Drawing
