XS4 One - Deadlatch

XS4 One - Deadlatch

The SALTO XS4 One Deadlatch (DL) is a revolutionary stand-alone electronic lock thanks largely to the level of technology packed inside that brings together the convenience of a smart stand-alone access point – easy to retrofit, install, and no wires – with virtually the same power and performance of an online traditional access control point.

XS4 One - Deadlatch



FINISH

  • IM (Satin Stainless Steel)
  • Dark Bronze
  • NE (Black)

READER FINISH

  • Black
  • White
XS4 One - Deadlatch

Features

  • Simple installation is possible on any type of door, including those with narrow, medium, or wide-stile frames.
  • Body and escutcheon made of steel.
  • Electronic privacy option.
  • The lock can always be opened from the inside (single action panic feature works in conjunction with the relevant mortise lock).

Technical Characteristics

  • Covers door thicknesses: From 44,5mm up to 82,5mm.
  • Reversible handle left or right escutcheon.
  • Clutch mechanism escutcheon; when unlocked handle moves freely.
  • Handle rotation: 45º.
  • Square spindles available: 7mm.
  • Compatible with market standard deadlatches.* *Depending on the model
  • Reversible latch guard comes with all models.
  • Version for use with a paddle (paddle not included).

Technology platforms

Salto KS

Salto KS

  • Cloud Service
  • Digital Key
  • Smart Tag
SALTO Space

SALTO Space

  • ROM Scalable System
  • SVN data-on-card
  • SVN-Flex
  • BLUEnet Wireless
  • JustIN Mobile - Digital Key

Carriers

Key Card

Key Card

  • NXP MIFARE®
  • HID®
Key Fob

Key Fob

  • NXP MIFARE®
Silicone Wristband

Silicone Wristband

  • NXP MIFARE®
Digital Key

Digital Key

  • Bluetooth LE
  • NFC - Near Field
  • Communication

Wireless technologies

NFC

NFC

Bluetooth LE

Bluetooth LE

RFID

RFID

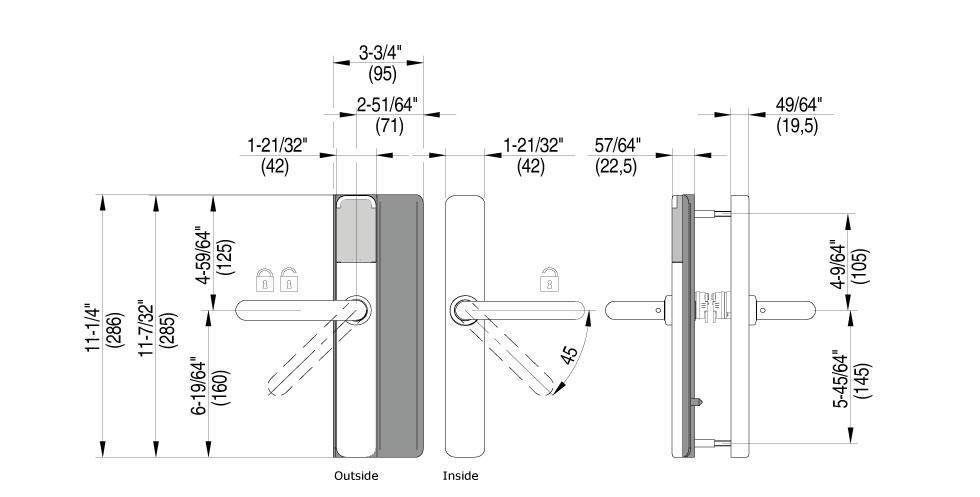

Technical Drawing

XS4 One - Deadlatch

Certifications

  • CE
  • FC
  • IP 55
  • EAC
  • BIS
  • IC
  • RCM
  • NCC
  • IMDA

(*) External escutcheon.
