XS4 Original+ - ANSI

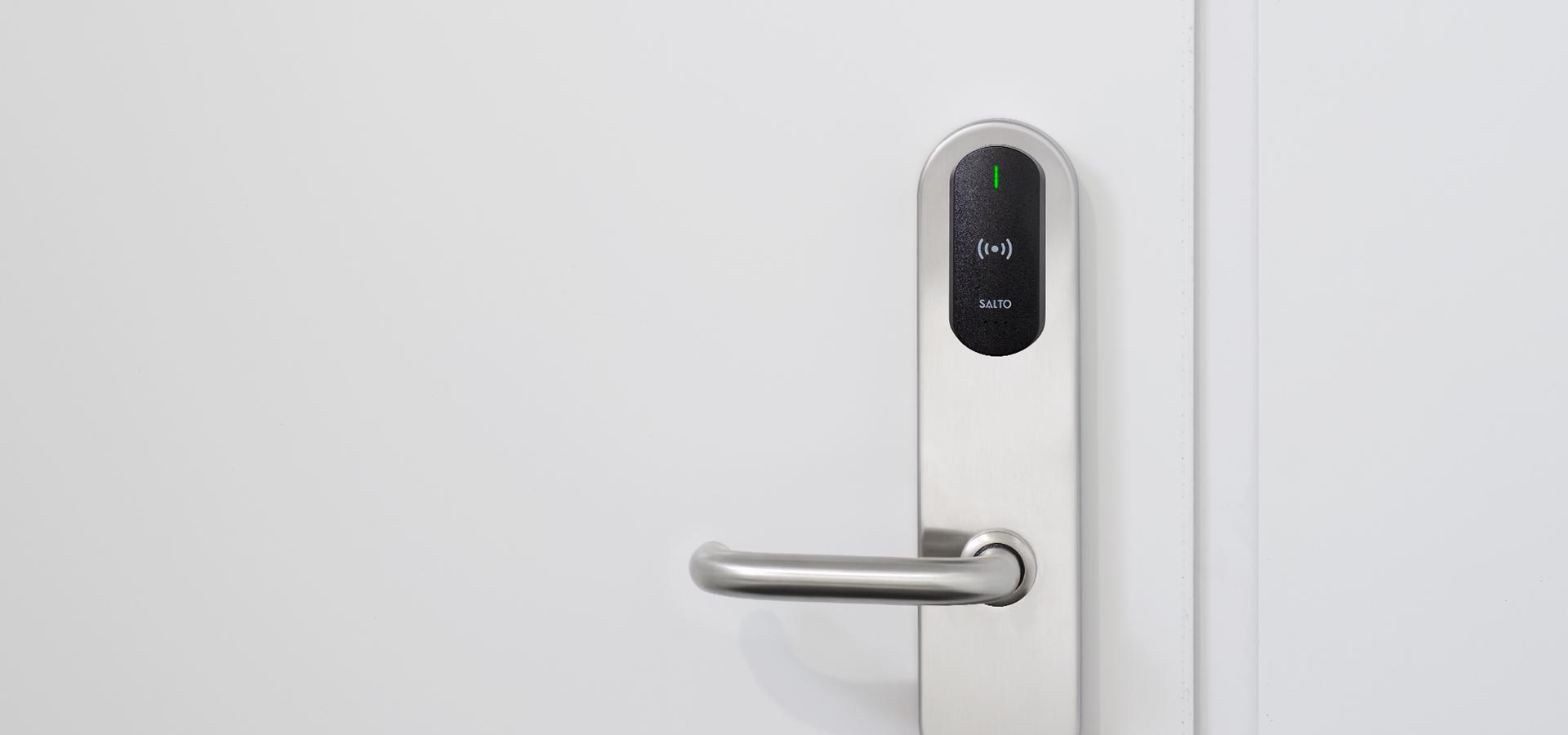

The SALTO XS4 Original+ is designed to fit most ANSI profile doors, mortise, cylindrical and tubular locks. Easy to install and retrofit, it can replace your existing door hardware and fits any door with a broad range of different models and functions. The XS4 Original+ incorporates the latest BLUEnet wireless and mobile credentials technology to accommodate access control needs of both today and tomorrow.

Features

Simple installation is possible on any type of door.
Body and escutcheon made of steel.
Available with mechanical cylinder cut outs for key override or access lock outs (override mortise cylinders).
Mechanical or electronic privacy option.
The lock can always be opened from the inside (single action panic feature works in conjunction with the SALTO LA1T15 series mortise lock).
Complementary escutcheons without reader available to maintain the aesthetics of doors that do not need to be controlled.

Technical Characteristics

Covers door thicknesses: From 32 (1-3⁄8") up to 120 mm (4-¾").

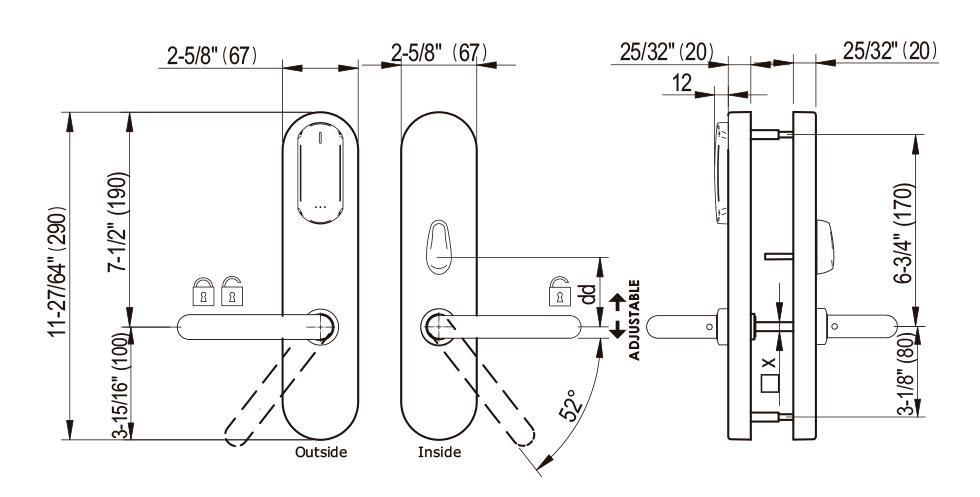

Dimensions: 290mm (11-27⁄64") x 67mm (2-5⁄8") x 20mm (25⁄32").
Clutch mechanism escutcheon; when unlocked handle moves freely.
Reversible handle left or right escutcheon.
Handle rotation: 52º.
Compatible Override Mortise Cylinder length: 1-1/8".
Compatible with ANSI standard cylindrical and mortise locks.
Square spindles available: 8mm (5⁄16"), 7mm diamond (9⁄32"), 8mm split (5⁄16"), 7mm diamond split (9⁄32") and 7,6mm (19⁄64").
