XS4 Original+ - EU

The SALTO XS4 Original+ narrow body version is designed to fit most European profile doors and mortise locks standards. Easy to install and retrofit, it can replace your existing door hardware and fits any door with a broad range of different models and functions. The XS4 Original+ incorporates the latest BLUEnet wireless and mobile credentials technology to accommodate access control needs of both today and tomorrow.

Features

Simple installation is possible on any type of door, including those with narrow frames.
Body and escutcheon made of steel.
Available with mechanical cylinder cut outs for key override or access lock outs (override European and Cam profile cylinder) with audit trail facility available.
Mechanical or electronic privacy option.
The lock can always be opened from the inside (single action panic feature works in conjunction with the relevant mortise lock).
Complementary escutcheons without reader available to maintain the aesthetics of doors that do not need to be controlled.

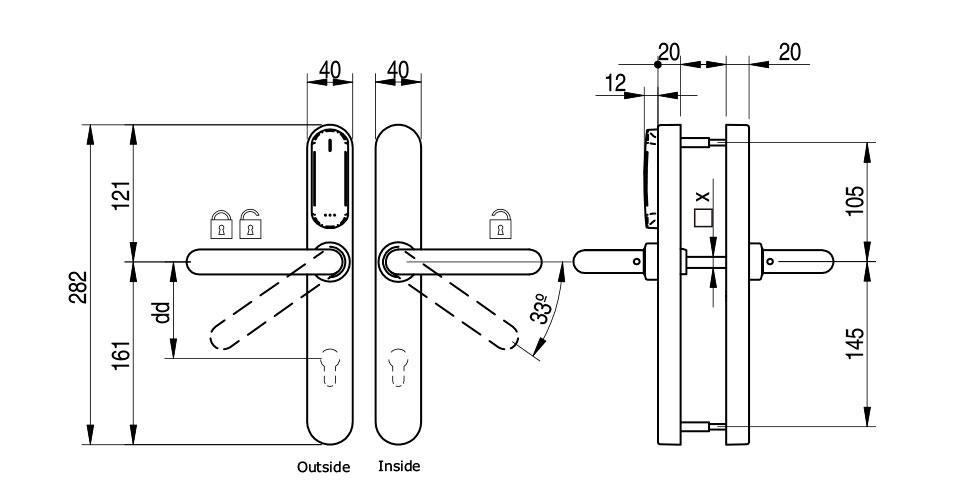

Technical Characteristics

Covers door thicknesses: From 32mm up to 120mm.
Dimensions: 282mm x 40mm x 20mm.
Reversible handle left or right escutcheon.
Clutch mechanism escutcheon; when unlocked handle moves freely.
Handle rotation: 33º.
Distance from the handle to the cylinder: 47mm to 110mm.
Compatible with DIN and European mortise locks, mortise locks with Swiss profile cylinder, Australian standard mortise locks and narrow style mortise lock.
Compatible with European profile and Swiss profile cylinders.
Square spindles available: 7mm, 7.6mm split (Australia), 8mm, 8mm split (Euro & ANSI), 9mm and 9mm split.
