XS4 Original Keypad - EU

• Simple installation is possible on any type of door, including those with narrow frames.
• Body and escutcheon made of steel.
• Three forms of authentication configurations available to grant access:Credential only.

        - Credential plus PIN.
        - Door code.

• Available with mechanical cylinder cut outs for key override or access lock outs (override European and Cam profile cylinder) with audit trail facility available.
• Mechanical or electronic privacy option.
• The lock can always be opened from the inside (single action panic feature works in conjunction with the relevant mortise lock).

• Covers door thicknesses: From 32mm up to 120mm.

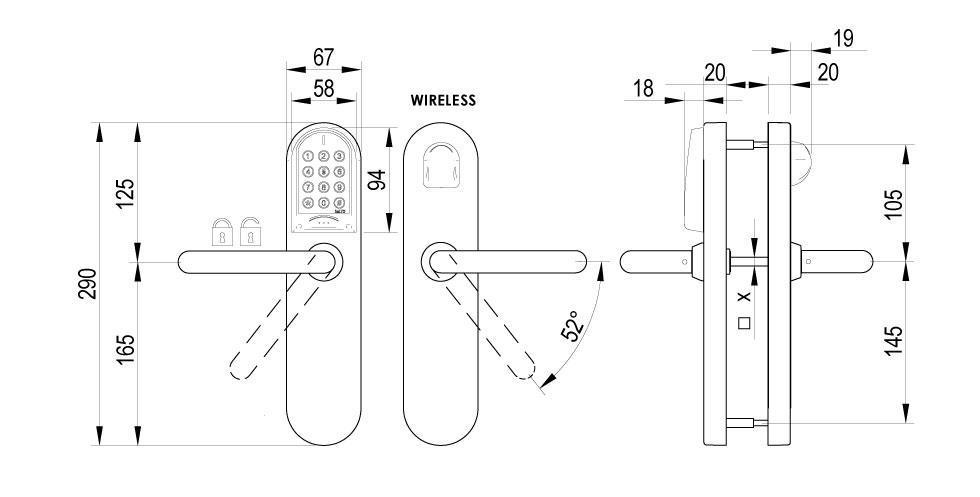

• Dimensions: 290mm x 67mm x 20mm.
• Reversible handle left or right escutcheon.
• Clutch mechanism escutcheon; when unlocked handle moves freely.
• Handle rotation: 52º.
• Distance from the handle to the cylinder: 47mm to 110mm.
• Compatible with DIN and European mortise locks, mortise locks with Swiss profile cylinder, Australian standard mortise locks and narrow style mortise lock.
• Compatible with European profile and Swiss profile cylinders.
• Door thickness: Square spindles available: 7mm, 7.6mm split (Australia), 8mm, 8mm split (Euro & ANSI), 9mm and 9mm split.
