XS4 Original Double Reader - EU

The XS4 Original Double Reader electronic escutcheon controls both the entry and exit access of a door. Its audit trail facility can identify entry and exit actions, and can be fitted to almost any type of Euro profile door. It can also operate with a wide range of locks including Swiss cylinders.

FINISH

READER FINISH

Features

Simple installation is possible on any type of door, including those with narrow frames.
Body and escutcheon made of steel.
Available with mechanical cylinder cut outs for key override or access lock outs (override European and Swiss profile cylinder).

Technical Characteristics

Covers door thicknesses: From 32mm up to 120mm.

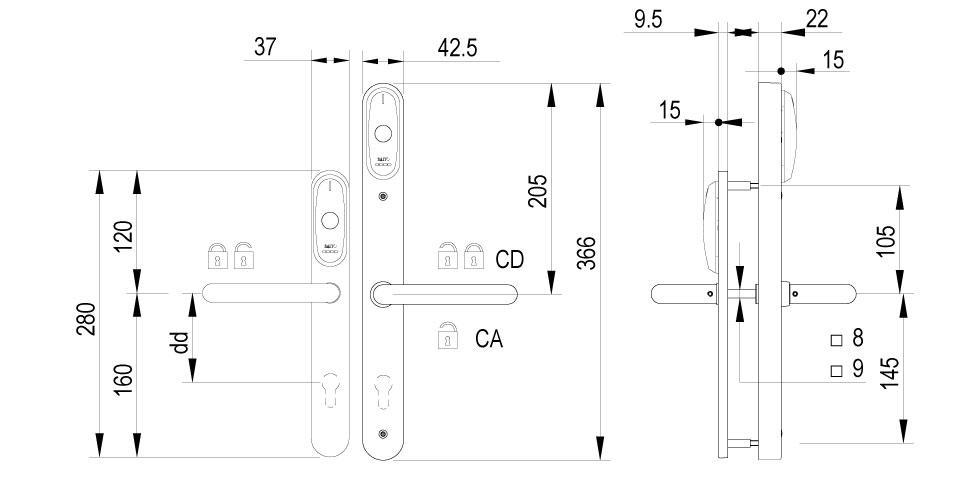

Dimensions: 280mm x 37mm x 9,5mm. (Outside) 366mm x 42,5mm x 22mm. (Inside)
Double reader escutcheon for control of both entry and exit, also with different authorizations.
Handle rotation: 33º.
Distance from the handle to the cylinder: 47mm to 110mm.
Compatible with DIN, European and Scandinavian mortise locks, standard mortise locks and narrow style mortise locks.
Compatible with European profile and Swiss profile cylinders.
Door thickness: Square spindles available: 8mm and 9mm.
Optional torx 20 tamper resistant proof screw for quick and secure installation from inside.
